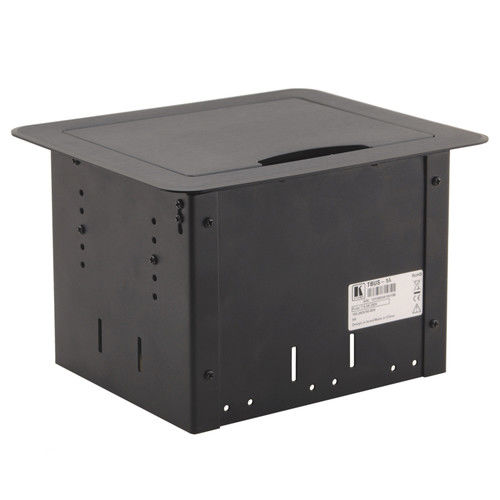

Kramer TBUS-6xl
The TBUS?6xl is the enclosure of a new modular system with a tilt?up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord. Boardrooms. Conference rooms. Classrooms. Training facilities. Lab tables. Lecterns.
€ 450.00 inc. VAT

Description


  •  Inner Frame — 3 different "T3F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass–through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
  •  Power Sockets — 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
  •  Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket.
  •  Optional Accessories — TBUS Brackets, K–Able Box Cable Reels, Step–In Modules and Controllers are available.
  •  Retractable Lid — Manually slides into unit.
  •  Connector Depth — Adjustable.
  •  Installation Requirement — Table cutout of 225mm x 123mm (8.87" x 4.85").
  •  Dimensions — Top plate: 24.3cm x 14.0cm (9.6" x 5.5") W, D; Enclosure: 22.1cm x 10.2cm x 13.0cm (8.7" x 4.0" x 5.1") W, D, H.
  •  Weight — 1.35 kg (2.8 lbs) approx.; table clamps: 0.25 kg (0.6 lbs) approx.
